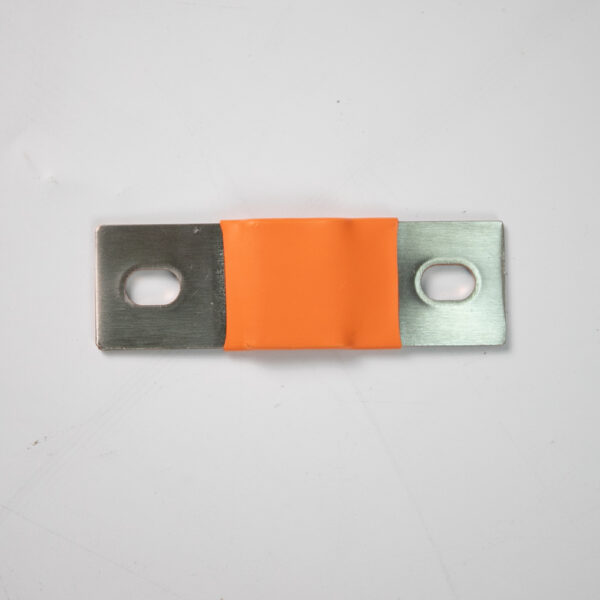

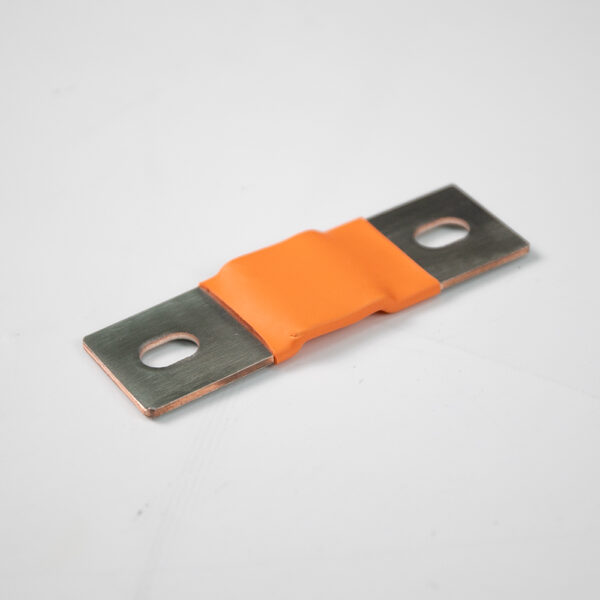

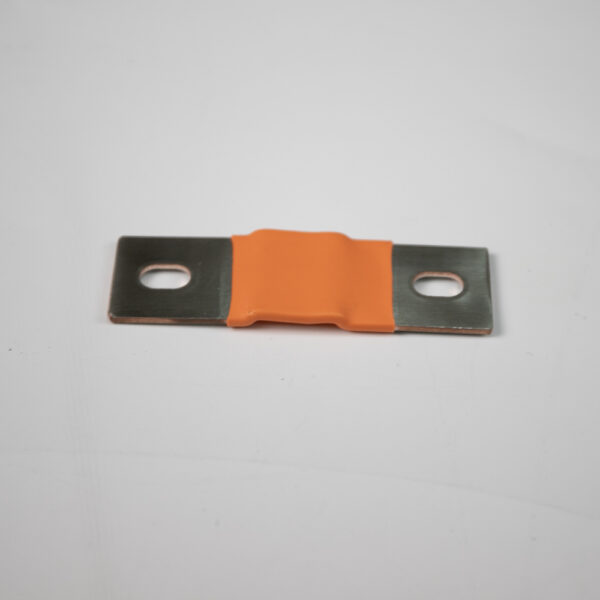

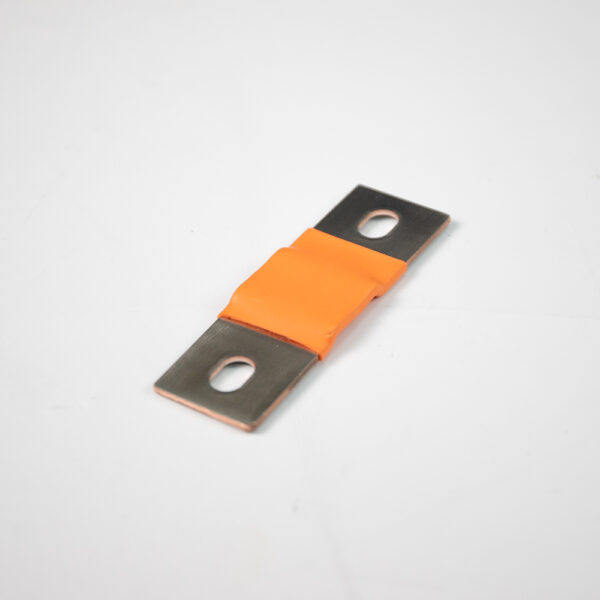

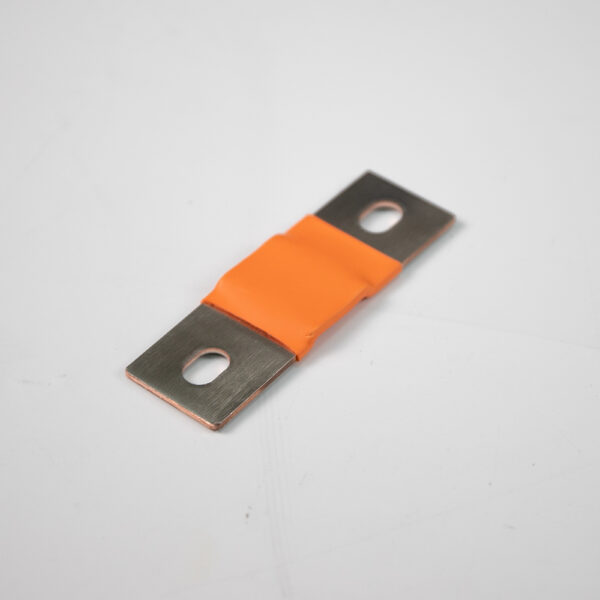

Flexible Busbar M8 Size for MB56 LF628K Cell

High-Current Flexible Copper Busbar for EVE MB56 (M8)

Protect your terminals and maximize your power. Specifically engineered for EVE MB56 560Ah+ cells, this 300A-rated flexible busbar absorbs cell expansion stress while delivering elite conductivity.

Custom Fit: Precision-sized (100*30*2 mm) for aftermarket M8 Single Stud terminals.
Extreme Performance: Handles 300A continuous discharge with zero heat build-up.
Terminal Protection: Flexible multi-layer design prevents terminal cracking during thermal expansion.
Superior Finish: High-purity copper with anti-corrosive nickel plating for long-term reliability.
Complete Kit: Includes 2x M8 flange nuts for a secure, high-torque connection.

Flexible Copper Busbar for EVE MB56 (M8 Stud) | 300A High-Current

Upgrade your battery bank’s safety and efficiency with our premium Flexible Copper Busbars, specifically engineered for the EVE MB56 560Ah+ Prismatic Cells. Designed for high-performance DIY energy storage, these busbars provide the perfect balance of conductivity and mechanical protection.

Why Choose Flexible Busbars for your EVE MB56?

Standard rigid busbars can put immense stress on battery terminals during thermal expansion or vibration, leading to cracked seals and cell failure. Our multi-layered flexible design absorbs movement, ensuring your investment stays protected for thousands of cycles.

Key Technical Specifications

Parameter	Detail
Material	High-Conductivity 99.9% Copper
Surface Treatment	Anti-Oxidized Nickel Plating

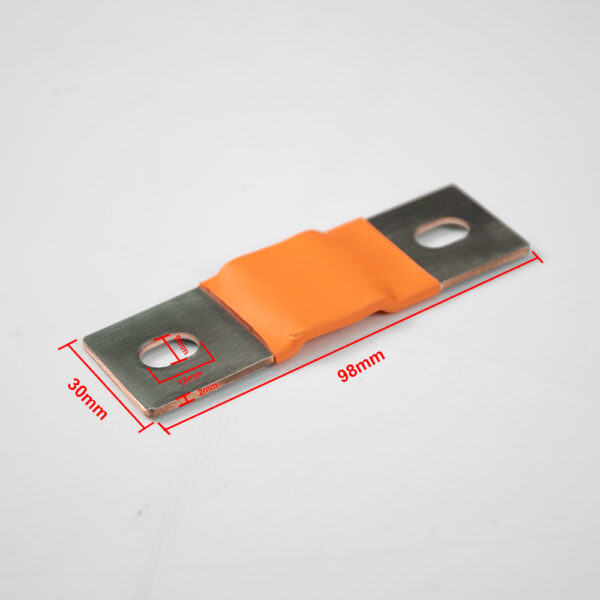

Dimensions	98mm x 30mm x 2mm
Cell Compatibility	EVE MB56 (Aftermarket Single M8 Stud)
Continuous Discharge	300A (Cool Operation)
Peak Current	400A+ (Short Burst)

Core Features & Benefits

Advanced Terminal Protection: The flexible construction acts as a “shock absorber” for your battery terminals. It prevents stress-induced damage caused by the natural expansion and contraction of prismatic cells during charge/discharge cycles.
Superior Conductivity & Low Resistance: Built with high-purity copper, these busbars minimize voltage drop across your 16S or 16P configurations. Even under a continuous 300A discharge, they maintain a low thermal profile, preventing heat-soak in your battery box.
Nickel-Plated for Longevity: The surface is treated with premium nickel plating to prevent copper oxidation (verdigris). This ensures a low-resistance connection that lasts for years, even in humid environments or marine applications.
Optimized for Aftermarket M8 Studs: Specifically sized for the EVE MB56 aftermarket M8 stud conversion, providing a snug, flush fit that maximizes the contact surface area.

What’s in the Box?

1x Flexible Copper Busbar (100*30*2 mmmm)
2x M8 Stainless Steel Flange Nuts (High-torque compatible)
