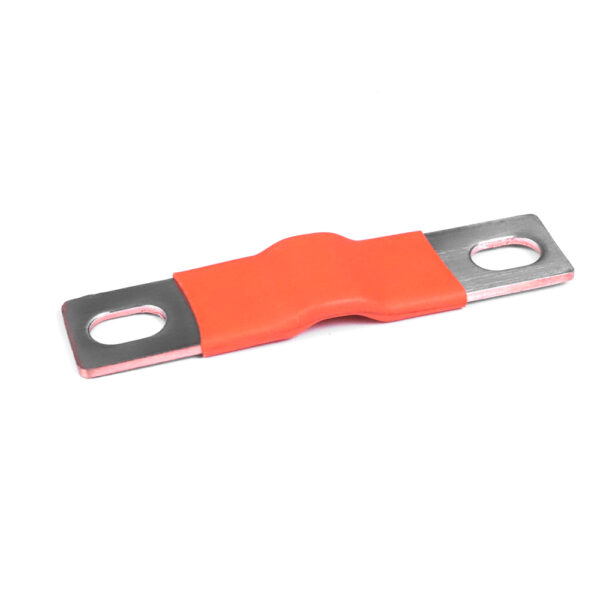

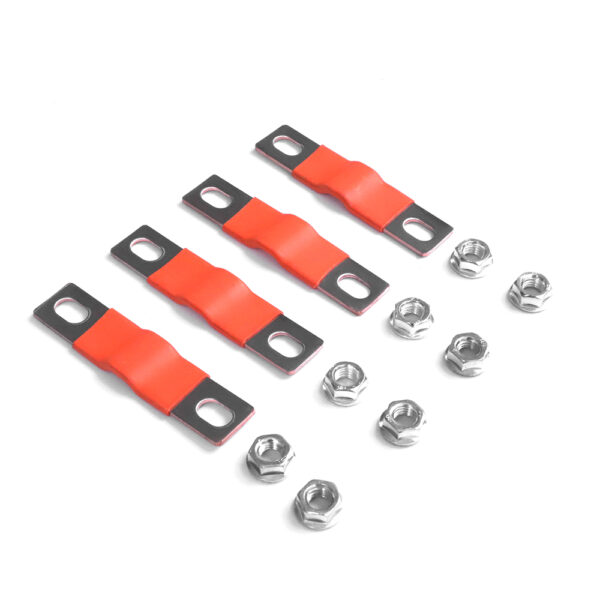

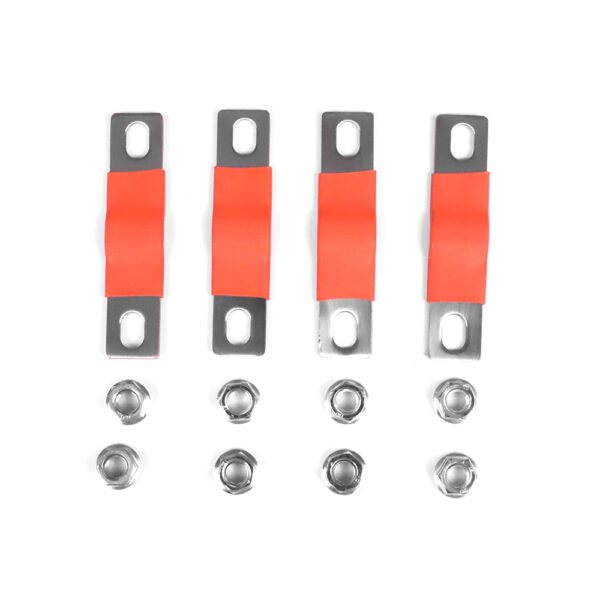

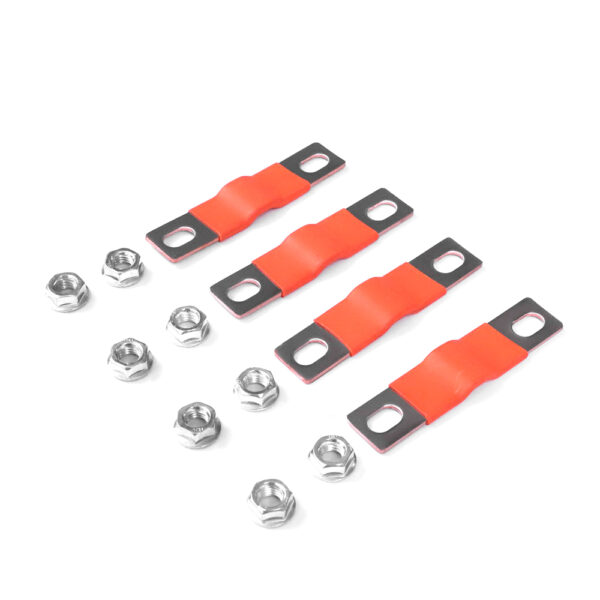

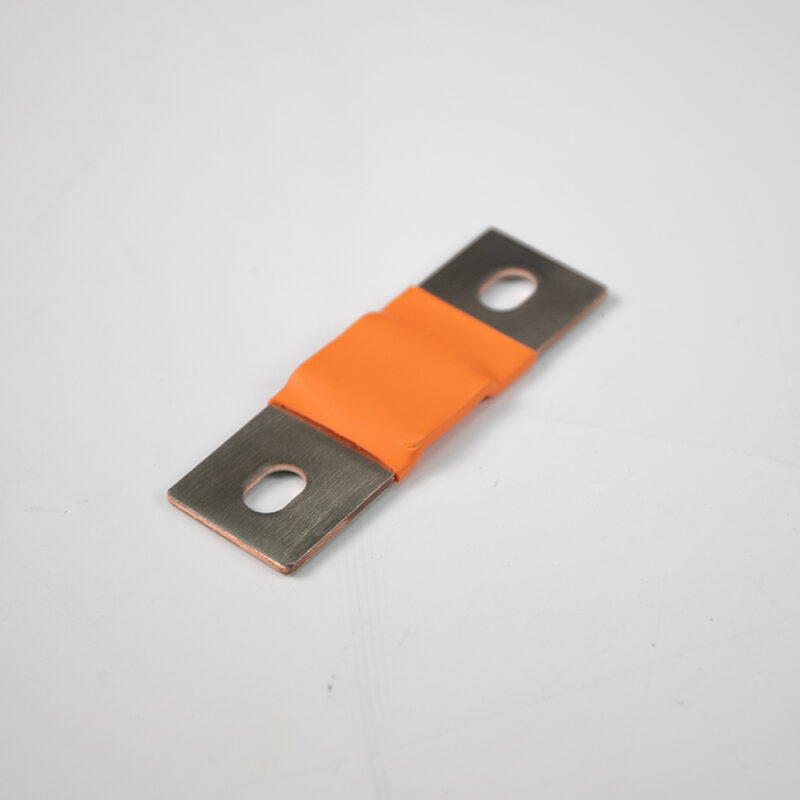

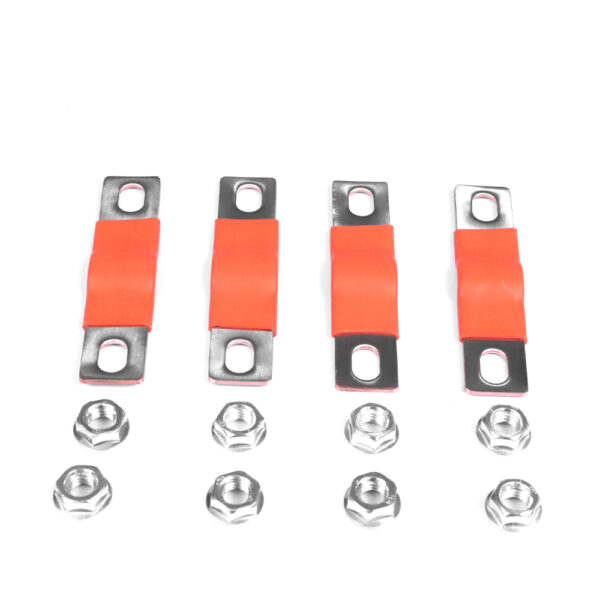

Custom Flexible Busbars for MB56 Cell

Busbar Material: Nickel-plated copper.
Applicable Battery Cell Model: MB56 3.2V 628Ah cells with M8 studs

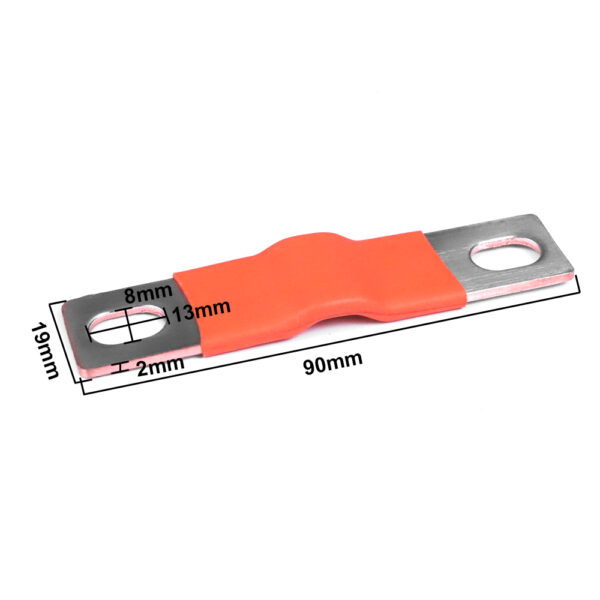

Dimension:90*20*2mm

Maximize your power output with confidence. With a robust 200A continuous discharge capability, the MB56 is built for heavy-duty ESS. Pro-tip: If your build features a 300A BMS, pair it with our premium flexible busbars to minimize resistance and heat, guaranteeing a longer lifespan for your energy storage system.

Why choose flexible busbars?
LiFePo4 cells expand with increasing cycles. If the cells are not secured with a clamp, the expansion will increase the distance between the two cells. This will cause the busbars on the two cell terminals to separate due to the force applied, potentially affecting the terminals. Flexible busbars can reduce this effect.
