24V 280Ah/306Ah/314Ah DIY Box for RESS

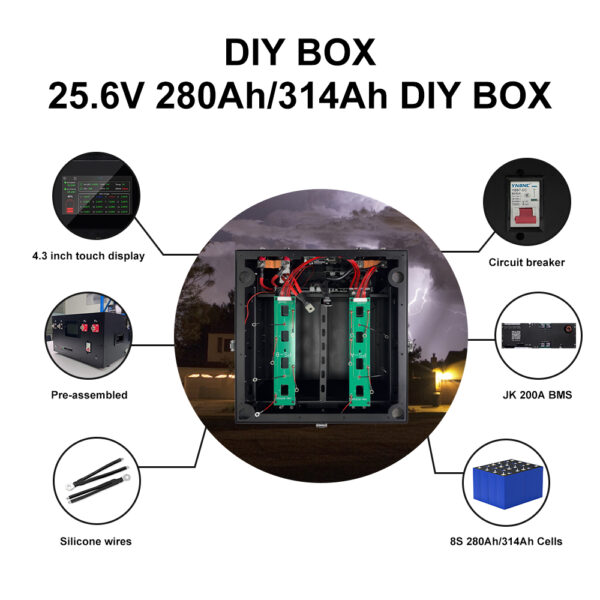

  • [Pre-assembled Version] This 24V MB31 DIY battery box is pre-assembled. When assembling, you only need to arrange the battery cells in the correct order, and then tighten the screws to use it.

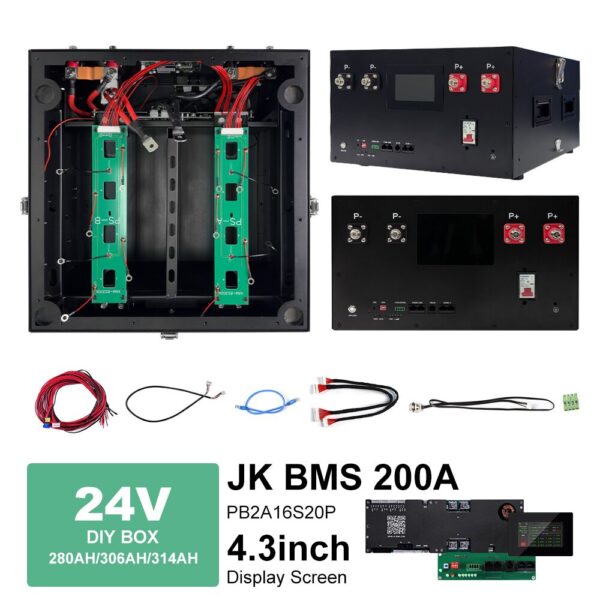

  • [Smart BMS] Equipped with JK PB2A16S20P BMS, 2A active balancing, 200A continuous discharge current, wireless Bluetooth APP monitoring, 4.3-inch touch screen.
  • [High-quality Materials] The 1.5mm thick stainless steel casing is designed to withstand drops and protect the battery cells from damage. Flexible busbars are included to handle high currents while also protecting the battery terminals.
  • [Matching Inverter] JK BMS can communicate with many brands of inverters on the market, enabling the inverter to understand the battery status in real time and provide double protection for the battery.
  • [250A Circuit Breaker] It is equipped with a 250A circuit breaker to protect the battery and household electrical system, promptly cutting off abnormal currents.

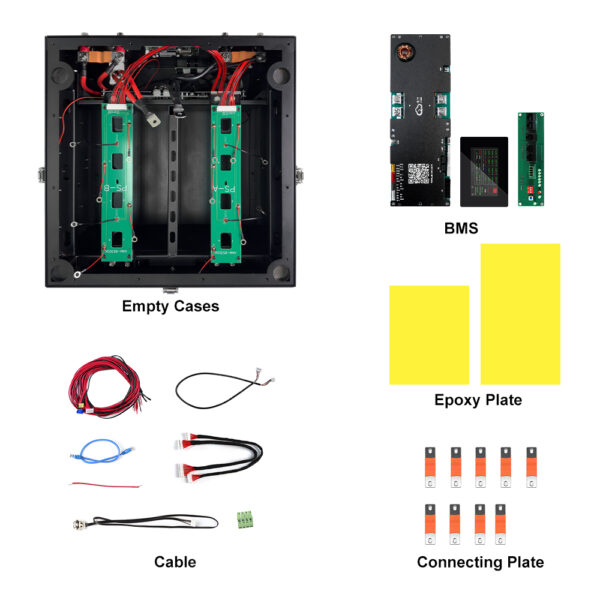

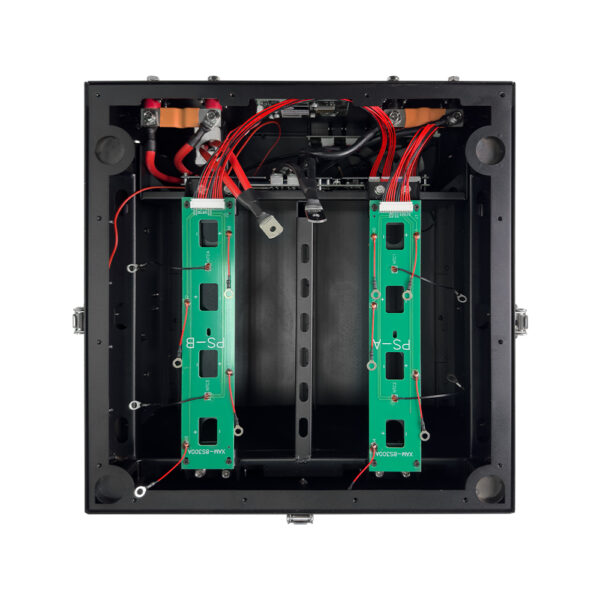

The 24V DIY Battery Box is a stainless steel metal enclosure specifically designed for small-scale energy storage systems. The enclosure features a built-in JK PB2A16S20P BMS, a 250A circuit breaker, and flexible busbars, providing all the necessary accessories for a DIY 24V 8kWh battery build (battery cells not included).

24V MB31 DIY Battery Box

Applicable Battery Cells

Suitable for EVE 280Ah/304Ah/306Ah/314Ah,CATL 302Ah,Hithium 280Ah/314Ah,Cornex 280Ah/314Ah,REPT 280Ah/314A prismatic cell.

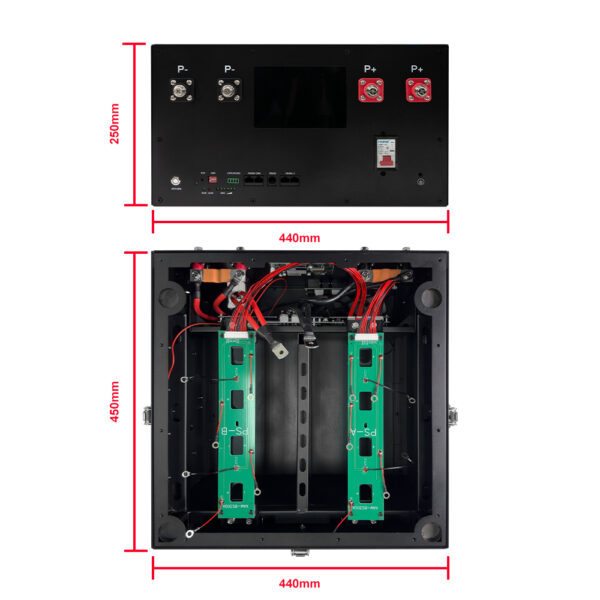

Battery cells dimension(W*T*H):173*72*204mm

JK PB2A16S20P BMS

8S 200A BMS,2A active balance current,200A continuous discharge current,5kW output power.4.3 inch touch diplay,bluetooth APP monitoring.

Pre-assembled Version

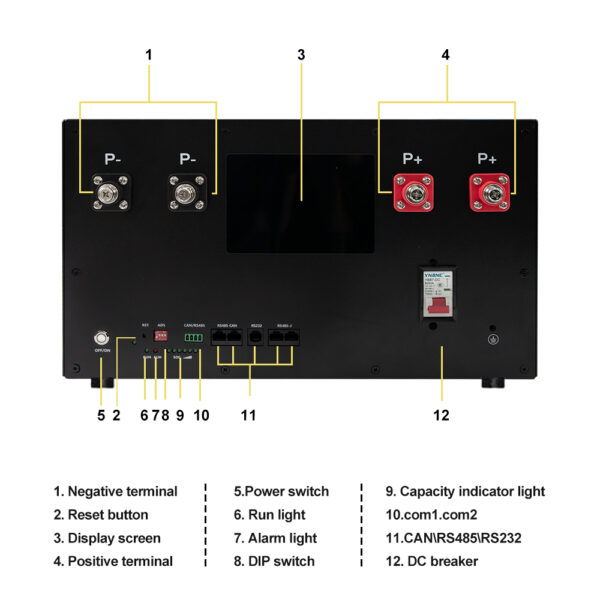

The DIY box comes pre-installed with the BMS, terminals, signal PCB, and circuit breaker.
When assembling, simply follow the correct battery cell placement order to complete the assembly.

250A Circuit Breaker

It is equipped with a 250A circuit breaker to achieve circuit protection.

Important Notes:

This 24V DIY battery box does not support series connection; it supports parallel connection only. If a 48V DIY box is required, other enclosure options are available.
